Balance Machine
|

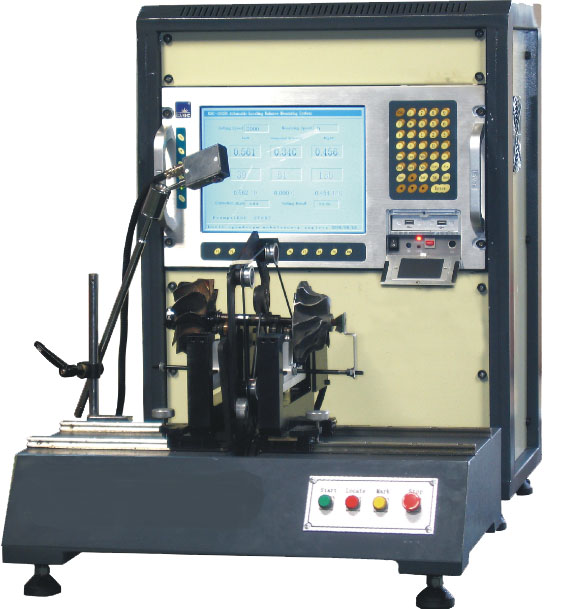

DT-D2 Turbocharger Balance Machine
DT-D2 Turbocharger Balance Machine
DT-D2 Auto-Positioning Balancer
Mainly applicable to Micro motor, electric tool industry etc dynamic balance check.
Type of balancing machine | SOFT Bearing Balancing Machine |
Specifications Type | DT-D2 |
Max. mass of works (kg) | 0.5 |
Max. dia of works (mm) | Φ100 |
Journal dia of works (mm) | Φ2~10 |
Dia of belt drive(mm) | Φ10~50 |
Min distance between supports(mm) | 20-400 |
Balancing speed (r/min) | 500~5000 |
Driving motor power | 180W |
Driving mode | Down tangent belt drive or no |
Min achievable residual unbalance amount | emar≤0.1g.mm/kg |
Unbalance reduction ratio | URR≥95% |
Detail ：
DT-D2 Turbocharger Balance Machine
